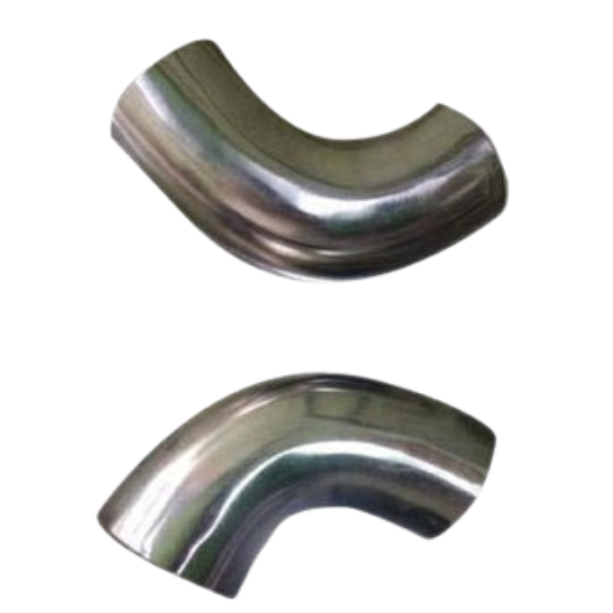

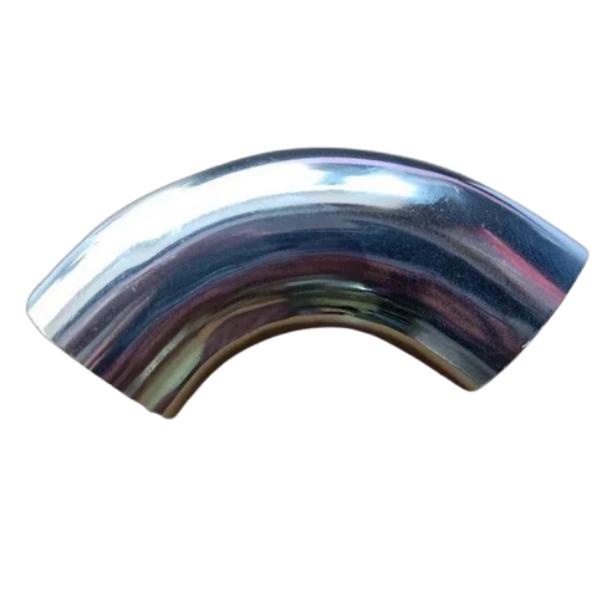

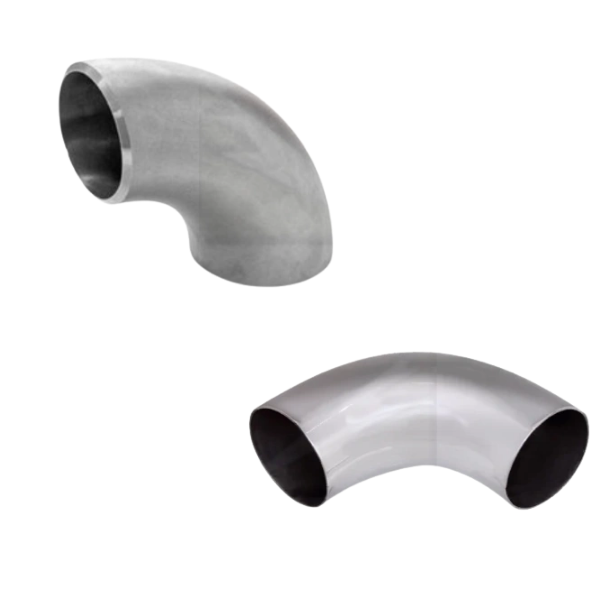

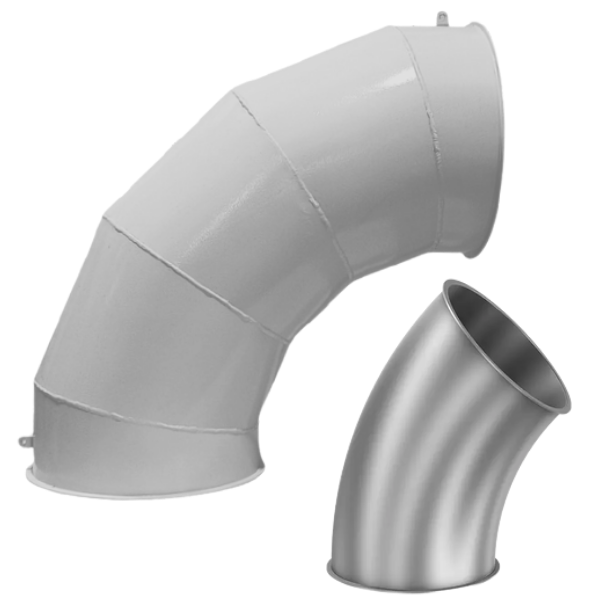

Bend / Elbow

Bend / Elbow is an essential ducting component used to change the direction of airflow in HVAC, ventilation, dust control, and industrial exhaust systems. It helps guide air, fumes, or dust smoothly through duct lines while minimizing pressure loss and turbulence. Properly designed bends ensure efficient airflow management and long-term system performance.

1. Efficient Airflow Direction Control

This duct Bend / Elbow is designed to provide smooth and efficient redirection of airflow in ducting systems. By reducing turbulence and pressure drop, it enhances overall system efficiency and maintains consistent air velocity. Its precise fabrication ensures optimal airflow performance in both industrial and commercial applications.

2. Strong & Durable Construction

Manufactured using high-quality MS, GI, Hot Dip Galvanized, SS304, or SS316L, this bend/elbow is built to withstand harsh operating conditions. Its robust construction ensures resistance to corrosion, mechanical stress, and wear, making it suitable for continuous operation in demanding environments. The durable build guarantees a long service life with minimal maintenance.

3. Wide Range of Sizes & Angles

Available in 5°, 15°, 30°, 45°, 60°, 75°, and 90° angles, this Bend / Elbow can be easily integrated into complex duct layouts. It is offered in diameters ranging from 50 mm up to 2200 mm, making it suitable for small to large-scale ducting systems. The standard Radius = 1D ensures smooth airflow and efficient system design.

Designed for use in dust collection, fume extraction, ventilation, and HVAC systems, this Bend / Elbow supports the efficient movement of air and particulate matter. It helps maintain system balance, reduces pressure losses, and contributes to improved air quality. Its precise geometry ensures consistent and reliable performance across applications.

5. Versatile Industrial Applications

This duct Bend / Elbow is widely used in dust control and collection systems, industrial ventilation, HVAC installations, clean rooms, pharmaceutical plants, cement industries, metal processing units, and commercial buildings. Its adaptability makes it an essential component for systems requiring directional airflow changes while maintaining efficiency and safety standards.
